Course: RAS 598 — Mobile Robotics
Platform: TurtleBot 4 with iRobot Create 3 base
Sensors: OAK-D RGB camera, 2D LiDAR
Software: ROS 2 Jazzy
Team: Harsh Padmalwar, Atharv Kulkarni

Autonomous Human-Following Mobile Robot

Overview

In this project, we built an autonomous human-following mobile robot using a TurtleBot 4. Our robot detects a person in the camera feed using YOLO, estimates the person’s distance and heading, and commands the base to move toward the detected person while maintaining a safe following distance.

Our implementation has moved well beyond the original Milestone 1 proposal. The current runtime pipeline is built around four active custom ROS 2 nodes:

target_tracker.py
follow_controller.py
safety_supervisor.py
person_follower.py

At this stage, the robot can detect a person and move toward them on hardware. The main issue that still remains is heading regulation during forward motion. While approaching a person, the TurtleBot can drift sideways, which causes the person to move out of the camera view. Once the target leaves the frame, the robot stops forward motion and enters search behavior. Fixing this centering and search behavior is one of our main Milestone 3 goals.

Current Objective

Our current objective is to make the TurtleBot:

detect a person in the camera frame
estimate the person’s relative heading and distance
move toward the person while maintaining safe separation
stop safely when sensor data becomes stale or unsafe
reacquire the person when they temporarily leave the field of view

Milestone Progress Summary

What we proposed in Milestone 1

In Milestone 1, we proposed:

a TurtleBot 4 differential-drive platform
camera-based human detection
LiDAR-based obstacle monitoring
a modular ROS 2 architecture
a follow controller driven by target distance and heading
a safety layer to override unsafe commands

What we achieved in Milestone 2

In Milestone 2, we implemented and tested a working hardware-integrated pipeline that:

subscribes to TurtleBot camera and LiDAR topics
uses YOLO to detect a person
estimates target heading and distance
publishes follow commands
applies a safety supervision layer
forwards safe velocity commands to the TurtleBot base
demonstrates real robot motion toward a detected person

What we plan to improve in Milestone 3

In Milestone 3, we plan to improve:

heading stability during forward motion
centering of the person in the camera viewport
search behavior based on the last seen bounding-box direction
reacquisition after temporary target loss
target retention during brief perception flicker

Hardware and Software Stack

Hardware

TurtleBot 4
iRobot Create 3 differential-drive mobile base
OAK-D RGB camera
2D LiDAR

Software

ROS 2 Jazzy / compatible
Python
YOLO-based person detector
RViz
rqt_graph

Kinematics

Why this section matters

There are two levels of kinematics that matter in this project:

Robot kinematics — how the TurtleBot differential-drive base moves when commanded
Follower control logic — how we convert the detected person’s distance and heading into motion commands

Differential-drive robot model

We model the TurtleBot base as a differential-drive / unicycle robot.

Let:

r = wheel radius
L = distance between the left and right wheel contact centers
omega_R = right wheel angular velocity
omega_L = left wheel angular velocity

The linear velocity of each wheel is:

\[v_R = r \omega_R\] \[v_L = r \omega_L\]

The body-frame linear and angular velocities are:

\[v = \frac{v_R + v_L}{2}\] \[\omega = \frac{v_R - v_L}{L}\]

Equivalently,

\[v = \frac{r}{2}(\omega_R + \omega_L)\] \[\omega = \frac{r}{L}(\omega_R - \omega_L)\]

These define the commanded robot body velocity.

State update equations

We write the robot pose in the world frame as:

\[\mathbf{x} = \begin{bmatrix} x \\ y \\ \theta \end{bmatrix}\]

where:

x and y are planar position
theta is robot heading

The continuous-time kinematics are:

\[\dot{x} = v \cos\theta\] \[\dot{y} = v \sin\theta\] \[\dot{\theta} = \omega\]

A simple discrete-time update with timestep Delta t is:

\[x_{k+1} = x_k + v_k \cos\theta_k \, \Delta t\] \[y_{k+1} = y_k + v_k \sin\theta_k \, \Delta t\] \[\theta_{k+1} = \theta_k + \omega_k \, \Delta t\]

This is the standard kinematic model for a differential-drive robot.

How we use these kinematics in the project

Our code does not command left and right wheel velocities directly. Instead, the controller computes:

linear.x = forward speed v
angular.z = yaw rate omega

These are published as velocity commands and then consumed by the TurtleBot motion interface.

So in our implementation, the controller outputs the unicycle control input:

\[\mathbf{u} = \begin{bmatrix} v \\ \omega \end{bmatrix}\]

and the TurtleBot base internally applies the differential-drive mapping.

That means our documentation needs to show both:

the wheel-level differential-drive equations
the body-level v, omega state equations

because our code works at the v, omega level while the robot itself is physically differential drive.

Person-following control law used in our code

Our active controller uses the detected person’s:

distance d
heading alpha

and compares the distance to a desired follow distance d*.

Distance error

\[e_d = d - d^\*\]

Heading error

\[e_\alpha = \alpha\]

Proportional controller

\[v_{\text{raw}} = k_p^{(d)} e_d\] \[\omega_{\text{raw}} = k_p^{(\alpha)} e_\alpha\]

Heading deadband

If the heading error is small enough, we suppress angular correction:

\[\omega_{\text{raw}} = 0 \quad \text{if} \quad |e_\alpha| < \alpha_{\text{deadband}}\]

Forward-speed reduction during heading error

To reduce forward speed when the person is off-center, we scale linear velocity by a cosine term:

\[v = v_{\text{raw}} \cdot \max(0.2,\cos(e_\alpha))\]

This means:

if the person is well centered, forward motion is strong
if the person is off-center, forward motion is reduced
but the robot still keeps moving instead of instantly switching to turn-only mode

Smoothed angular velocity

We also low-pass filter angular velocity:

\[\omega_k = \lambda \, \omega_{\text{raw}} + (1-\lambda)\omega_{k-1}\]

where lambda is the smoothing factor.

Saturation

Finally, we clamp the output:

\[0 \le v \le v_{\max}\] \[-\omega_{\max} \le \omega \le \omega_{\max}\]

This matches the behavior of our current follow controller.

Math-to-code alignment

The main mapping from the equations to the ROS 2 implementation is:

Math Quantity	Code Variable / Topic	Where it appears
`d`	`/see/target_distance`	`target_tracker.py` → `follow_controller.py`
`alpha`	`/see/target_heading`	`target_tracker.py` → `follow_controller.py`
`e_d = d - d*`	`range_error`	`follow_controller.py`
`e_alpha = alpha`	`angle_error`	`follow_controller.py`
`v`	`linear.x`	`follow_controller.py` → `safety_supervisor.py` → `person_follower.py`
`omega`	`angular.z`	`follow_controller.py` → `safety_supervisor.py` → `person_follower.py`

Why the robot currently drifts

Our current system demonstrates the correct overall structure, but one issue remains:

the robot moves forward while applying heading corrections
the heading corrections are not yet stable enough to keep the person centered
the person can drift out of the camera view
once the target is lost, the robot enters search behavior

So the kinematics are correct, but the control tuning and target retention logic still need improvement. This is a control-performance issue, not a differential-drive kinematics issue.

System Architecture

The older Milestone 1 flow is no longer the best representation of what is actually running. Our current implementation is simpler and directly aligned with the current codebase.

Active node pipeline

Camera + LiDAR
→ target_tracker.py
→ follow_controller.py
→ safety_supervisor.py
→ person_follower.py
→ TurtleBot base

Detailed Computational Map

Updated Mermaid Diagram

flowchart LR
    A["OAK-D camera topic: /oakd/rgb/preview/image_raw/compressed"] --> B["target_tracker.py"]
    C["LiDAR topic: /scan"] --> B

    B -- "/see/target_in_frame : std_msgs/Bool" --> D["follow_controller.py"]
    B -- "/see/target_distance : std_msgs/Float32" --> D
    B -- "/see/target_heading : std_msgs/Float32" --> D
    B -- "/see/person_location : geometry_msgs/PoseStamped" --> D

    C -- "/scan : sensor_msgs/LaserScan" --> E["safety_supervisor.py"]
    B -- "tracking status" --> E
    D -- "/think/follow_cmd_vel : geometry_msgs/TwistStamped" --> E

    E -- "/cmd_vel : geometry_msgs/TwistStamped" --> F["person_follower.py"]
    F -- "/cmd_vel_unstamped : geometry_msgs/Twist" --> G["TurtleBot Base"]

rqt_graph

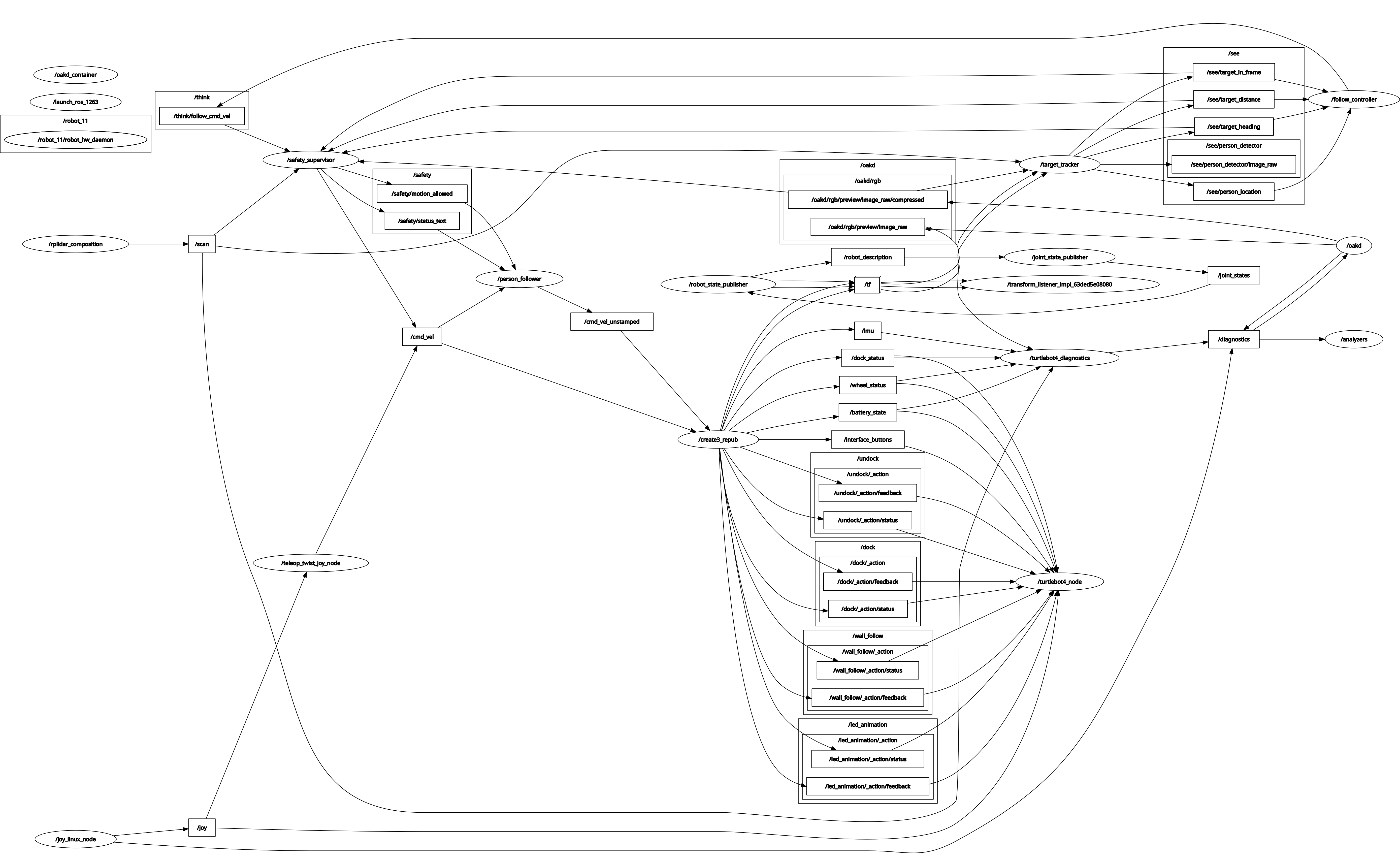

We included an rqt_graph export of the running pipeline here:

rqt_graph

Topics in the active flow

Topic	Message Type
`/oakd/rgb/preview/image_raw/compressed`	`sensor_msgs/CompressedImage`
`/scan`	`sensor_msgs/LaserScan`
`/see/target_in_frame`	`std_msgs/Bool`
`/see/person_location`	`geometry_msgs/PoseStamped`
`/see/target_distance`	`std_msgs/Float32`
`/see/target_heading`	`std_msgs/Float32`
`/think/follow_cmd_vel`	`geometry_msgs/TwistStamped`
`/cmd_vel`	`geometry_msgs/TwistStamped`
`/cmd_vel_unstamped`	`geometry_msgs/Twist`

Services and actions in the current active flow

Our current Milestone 2 runtime path does not use any custom ROS 2 services or actions in the person-following stack shown above. The active path is topic-driven.

Module Declaration Table

This table reflects the current project state and updates the older Milestone 1 declaration.

Module	Category	Type	Status	Change from Milestone 1	Purpose
OAK-D camera topics	Perception	Library	Active	Still used	Publishes RGB images for person detection
LiDAR `/scan`	Perception / Safety	Library	Active	Still used	Provides obstacle and range information
YOLO person detector	Perception	Library	Active	Still used	Detects people in the RGB feed
`target_tracker.py`	Perception	Custom	Active	Simplified from earlier architecture	Detects a person, computes heading and distance, publishes target topics
`follow_controller.py`	Control	Custom	Active / being tuned	Updated from original planner concept	Generates motion commands to move toward the person
`safety_supervisor.py`	Safety	Custom	Active	Added as explicit final safety layer	Stops the robot when perception or control data becomes stale or unsafe
`person_follower.py`	Actuation bridge	Custom	Active	New bridge in current flow	Sends safe motion commands to the TurtleBot base
RViz	Visualization	Library	Active	Used in our Milestone 2 demo	Shows live topics and camera view
`rqt_graph`	Debugging / documentation	Library	Active	Added to reflect the real ROS 2 graph	Documents node and topic plumbing

Module Descriptions

`target_tracker.py`

Source:
target_tracker.py

Purpose:
We use this node to detect a person with YOLO and publish the target state used by the rest of the stack.

Subscribes to:

/oakd/rgb/preview/image_raw/compressed
/scan

Publishes to:

/see/target_in_frame
/see/person_location
/see/target_distance
/see/target_heading

Logic flow:

subscribe to compressed RGB frames from the OAK-D camera
run YOLO person detection on the incoming frame
identify the person bounding box in image coordinates
compute the target heading from image-center offset
estimate target distance using LiDAR
publish the target state to the control pipeline

Current tuned parameters:

Parameter	Current Value	Purpose
`model_path`	`yolov8n.pt`	YOLO model file
`device`	`cpu` or `cuda:0`	Compute target for inference
`confidence_threshold`	`0.4`	YOLO detection filtering
`fallback_distance`	`2.0`	Used when LiDAR distance is unavailable
position filter window	`7`	Smooths target position estimates
position filter minimum confidence	`3`	Minimum valid measurements before trusted output
alpha-beta distance filter alpha	`0.25`	Distance smoothing

Hardware-specific notes:

camera topic used: /oakd/rgb/preview/image_raw/compressed
current camera-to-LiDAR offset used in heading logic:
- dx = 0.0635
- dy = 0.0381

Current limitation:
Target visibility can flicker if the person moves out of the frame or the detector becomes inconsistent for a few frames.

YOLO Person Detection Demo:

The following demonstrates our YOLO-based person detection running live on the TurtleBot 4. The bounding box shows the detected person with confidence score, estimated distance, and bearing angle computed in real time.

YOLO Detection Demo

`follow_controller.py`

Source:
follow_controller.py

Purpose:
We use this node to move the robot toward the person while trying to keep the person centered in the camera frame.

Subscribes to:

/see/target_in_frame
/see/person_location
/see/target_distance
/see/target_heading
/think/ctrl_cmd (optional control input)

Publishes to:

/think/planner_state
/think/follow_cmd_vel

Logic flow:

receive target visibility, heading, and distance
compute distance error relative to the desired following distance
compute angular correction using target heading
reduce forward speed when heading error increases
publish a stamped velocity command for the safety layer

Current tuned parameters:

Parameter	Current Value	Purpose
`follow_distance`	`1.0`	Desired stand-off distance
`search_rot_speed`	`0.4`	Search rotation speed when target is lost
`kp_linear`	`0.45`	Linear proportional gain
`kp_angular`	`0.45`	Angular proportional gain
`max_linear_speed`	`0.22`	Linear velocity limit
`max_angular_speed`	`0.6`	Angular velocity limit
`deadband_angle_deg`	`4.0`	Small-angle deadband
`control_rate`	`10.0`	Control loop rate
`min_valid_distance`	`0.2`	Minimum usable distance
`max_valid_distance`	`5.0`	Maximum usable distance
`target_lost_timeout`	`0.5`	Short memory window before search mode

Current limitation:
The TurtleBot can move toward the person but still over-correct in heading, causing the person to drift out of view. This is one of our main Milestone 3 tuning tasks.

`safety_supervisor.py`

Source:
safety_supervisor.py

Purpose:
We use this node as the final protective layer before commands reach the robot base.

Subscribes to:

/think/follow_cmd_vel
/scan
relevant perception status topics
camera activity topics

Publishes to:

/cmd_vel
optional safety status topics

Logic flow:

monitor obstacle distance from LiDAR
monitor target visibility and stale-data conditions
validate controller output
override unsafe commands with zero velocity
publish only safe motion commands downstream

Current tuned parameters:

Parameter	Current Value	Purpose
`min_obstacle_distance`	`0.50`	Safety stop radius
`target_loss_timeout`	`2.0`	Stop if person is lost too long
`camera_timeout`	`1.0`	Camera heartbeat timeout
`lidar_timeout`	`1.0`	LiDAR heartbeat timeout
`controller_timeout`	`1.0`	Controller heartbeat timeout
`max_linear_speed`	`0.30`	Acceptable command limit
`max_angular_speed`	`1.20`	Acceptable angular command limit
`scan_angle_min_deg`	`-25.0`	Front scan window start
`scan_angle_max_deg`	`25.0`	Front scan window end
`publish_rate`	`20.0`	Safety loop rate

Why it matters:
This node prevents the robot from moving blindly when the target or sensors become unreliable.

`person_follower.py`

Source:
person_follower/person_follower.py

Purpose:
We use this node to bridge the safe control command to the TurtleBot motion interface.

Subscribes to:

/cmd_vel

Publishes to:

/cmd_vel_unstamped

Logic flow:

receive safe stamped velocity command
convert it to the format used by the TurtleBot base in our current setup
publish the final command that makes the robot move in real life

Current tuned parameters:

Parameter	Current Value	Purpose
`input_topic`	`/cmd_vel`	Safe input command topic
`output_topic`	`/cmd_vel_unstamped`	Base motion command topic
`command_timeout`	`0.75`	Stop if command stream goes stale
`max_linear_speed`	`0.30`	Clamp base linear command
`max_angular_speed`	`1.20`	Clamp base angular command
`publish_rate`	`20.0`	Publish loop rate

Experimental Analysis and Validation

ROS Communication Proof

We verified that the active nodes in our Milestone 2 stack are functional and able to communicate over ROS 2.

Completed active nodes:

target_tracker.py
follow_controller.py
safety_supervisor.py
person_follower.py

The screenshots below show the active ROS graph from our hardware-tested setup.

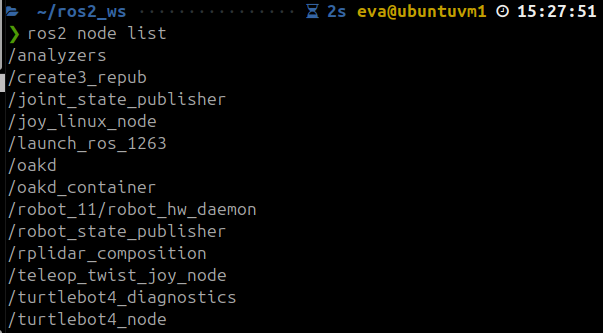

ROS node list

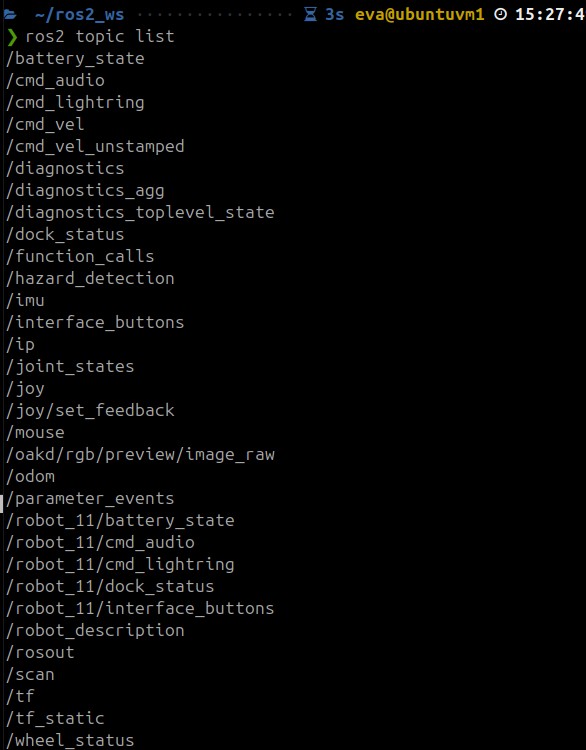

ROS topic list

During testing, we also verified that the controller was publishing follow commands on /think/follow_cmd_vel and that safe motion commands were propagated downstream through the safety and actuation pipeline.

Noise and Uncertainty Analysis

Hardware calibration, offsets, and tuning

The project is running on hardware, so our main uncertainty sources come from the camera, LiDAR, and target-detection pipeline.

Camera / geometry assumptions currently used in code:

Quantity	Current Value	Notes
`fx`	`1012.88`	Camera focal scale in x
`fy`	`1012.88`	Camera focal scale in y
`cx`	`634.40`	Principal point x
`cy`	`363.77`	Principal point y
`dx`	`0.0635`	Camera-to-LiDAR x offset used in heading logic
`dy`	`0.0381`	Camera-to-LiDAR y offset used in heading logic

Hardware Sensor Noise Profile

To characterize sensor noise, we recorded 30 seconds of target distance and heading data while a person stood stationary in front of the robot. Data was captured using ros2 bag record on /see/target_distance and /see/target_heading.

Test conditions:

Person standing still at approximately 2.8m from the robot
Robot stationary
Indoor lab environment

Results:

Quantity	Samples	Mean	Std Dev	Min	Max
Target Distance	18	2.81 m	0.22 m	2.24 m	3.01 m
Target Heading	18	23.91°	0.77°	21.97°	24.88°

Key observations:

Distance variance of ±0.22m at 2.8m range represents approximately 8% measurement noise. This is primarily caused by LiDAR range uncertainty at longer distances and the angular offset between the camera bounding box center and the LiDAR beam direction.
Heading std of 0.77° indicates a stable and consistent bearing estimate. The heading computation from image-center pixel offset is robust at this range.
Only 18 valid samples were recorded in 30 seconds. This sparse detection rate is caused by YOLO confidence dropping at longer distances — at 2.8m, some frames fall below the confidence_threshold = 0.4 and are discarded.

How we adapt to this noise:

Filter	Parameter	Value	Purpose
Position filter window	`window_size`	7	Smooths x, y, heading, distance over last 7 frames
Position filter min confidence	`min_confidence`	3	Requires 3 valid measurements before trusting output
Alpha-beta distance filter	`alpha`	0.25	Smooths raw LiDAR distance estimates
Angular smoothing	`angular_smoothing`	0.2	Low-pass filters angular velocity commands
Target lost timeout	`target_lost_timeout`	0.5s	Short memory window before entering search mode

These parameters were tuned during hardware testing to reduce abrupt motion changes caused by intermittent detection loss and sensor noise.

Simulation note

Our current milestone path is a hardware track, not a simulation-only track. Because of that, the standalone simulation noise injector node is not part of the active Milestone 2 runtime stack.

If we later add a simulation validation branch, we will document the standalone noise injector there.

Run-time Issues We Observed

During our hardware runs, we observed the following behaviors:

the TurtleBot successfully detects a person and begins moving forward
the robot can still drift sideways while approaching the target
the person is not always kept centered in the camera viewport
if the person leaves the frame, the controller enters search behavior
the search is not yet directed using the last seen bounding-box location
intermittent target flicker can cause unstable following

Specific issue we plan to fix next:

when the person leaves the frame, we want the TurtleBot to search in the direction where the bounding box was last seen instead of using a more generic search behavior

Demonstration Videos

The GIF previews below are visible directly in the report. Clicking on each GIF opens the full video file stored in the repository.

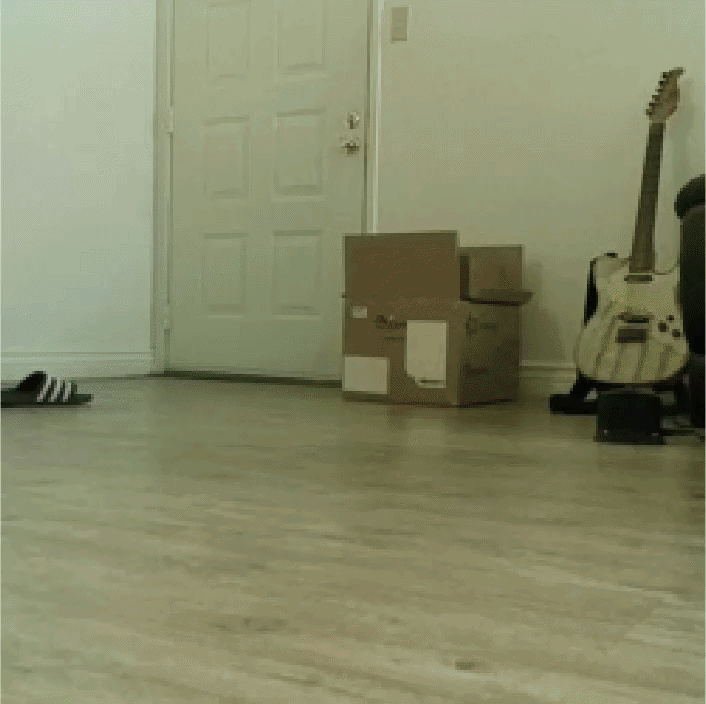

RViz Camera-View Demo

This demo shows:

the TurtleBot camera stream visualized in RViz
YOLO detecting a person
the TurtleBot beginning to move toward the person

Video file:
RVIZ.mp4

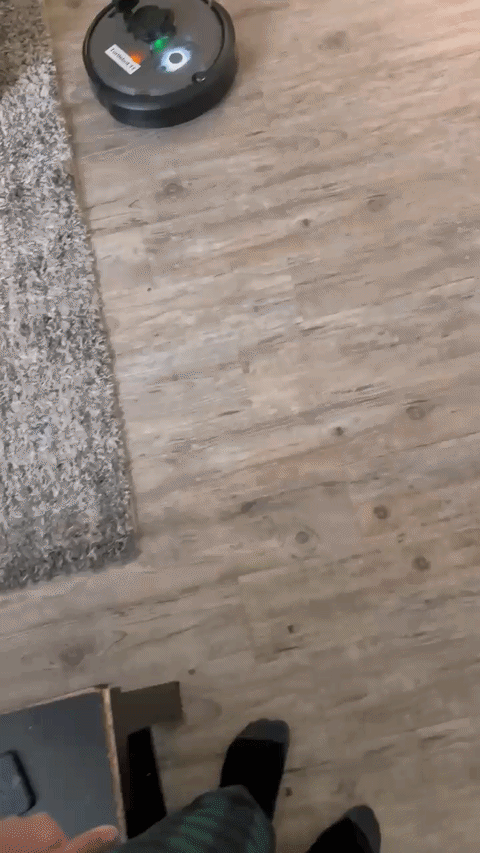

Person Point-of-View Demo

This demo shows:

a person standing in front of the TurtleBot
the TurtleBot moving toward the person
the sideways drift and heading issue
the robot re-entering search mode when the person moves out of the camera view

Video file:
POV.mp4

Safety and Operational Protocol

Because the robot operates around people in indoor spaces, we treat safety as a core requirement.

The robot stops if:

an obstacle is detected within the minimum safety distance
the target tracking signal becomes stale
camera data or LiDAR data stops arriving
controller commands stop arriving
unsafe motion commands are generated

Recovery behavior

The robot remains stationary until:

camera and LiDAR streams are valid again
the target is reacquired
no obstacle is inside the safety boundary
the required nodes are publishing normally again

Repository Structure

Autonomous-Human-Following-Mobile-Robot/
├── .github/
├── _includes/
├── _layouts/
├── assets/
├── config/
├── docs/
│   ├── Images/
│   │   ├── rqt_graph_m2.png
│   │   ├── rosnodelist.png
│   │   └── rostopiclist.jpeg
│   └── Videos/
│       ├── RVIZ.gif
│       ├── RVIZ.mp4
│       ├── POV.gif
│       └── POV.mp4
├── person_follower/
│   ├── __init__.py
│   ├── target_tracker.py
│   ├── follow_controller.py
│   ├── safety_supervisor.py
│   ├── person_follower.py
│   └── ...
├── project/
│   ├── index.md
│   ├── report1.md
│   ├── report2.md
│   └── report3.md
├── resource/
├── test/
├── _config.yml
├── index.md
├── .gitignore
├── Gemfile
├── package.xml
├── setup.py
└── setup.cfg
---

## Build Instructions

```bash
cd ~/ros2_ws/src
git clone https://github.com/Hp092/Autonomous-Human-Following-Mobile-Robot.git
cd ~/ros2_ws
colcon build --packages-select person_follower
source install/setup.bash

Example Run Sequence

Ensure robot topics are visible

Relevant runtime topics include:

/oakd/rgb/preview/image_raw/compressed
/scan
/cmd_vel
/cmd_vel_unstamped

Start the perception node

ros2 run person_follower target_tracker

Start the controller

ros2 run person_follower follow_controller

Start the safety supervisor

ros2 run person_follower safety_supervisor

Start the base command bridge

ros2 run person_follower person_follower

Visualize in RViz

/see/person_detector/image_raw

Known Issues

the robot can follow, but the heading is not yet perfectly regulated
the person is not always kept centered in the camera viewport
the robot can drift sideways while moving forward
when the person leaves the frame, the robot enters search mode
search is not yet guided by the last seen bounding-box direction
target retention is still sensitive to intermittent detection loss

Feedback Integration Table

Milestone 1 Feedback / Question	What we changed in Milestone 2	Current Status
The custom modules are Target Tracker and Range & Bearing Estimator. The former is probably going to use a library that gives you the 2D/3D position, and the latter is a few lines of code. If this is not true, please let me know what the expected work is.	We revised the architecture and simplified the runtime stack. Instead of keeping `range_bearing_estimator` as a separate active node in the final flow, we integrated heading and distance estimation directly inside `target_tracker.py` using YOLO detections from the RGB camera and distance estimation from LiDAR. We also added three custom modules beyond the original proposal: `follow_controller.py`, `safety_supervisor.py`, and `person_follower.py`, which together handle motion generation, safety overrides, and hardware command forwarding.	Done
The project website does not render properly. I read your report from the git repo README file on GitHub.	We reorganized the milestone documentation into separate report files inside the repository and corrected Markdown rendering issues such as broken Mermaid syntax, math formatting, and media/image paths. We also updated the documentation structure so the report can be read directly from the repository in rendered Markdown form.	Done
What happens when someone walks in between the robot and the person? Is this something you expect to tackle in this project?	In the current implementation, this case is not fully solved. If the tracked person is occluded or leaves the camera frame, the robot can lose the target and switch into search behavior. We documented this as a current limitation and identified target retention/reacquisition as a Milestone 3 improvement area.	Pending
Are you estimating the future trajectory of the person so you can recover when lost?	No future trajectory prediction is implemented in the current code. The present controller uses current distance and heading measurements, short-term smoothing, and a timeout-based recovery/search behavior. We plan to improve recovery in Milestone 3 by using the last seen bounding-box direction when the target is lost.	Not yet implemented
A part of robotics in the real world is to signify the robot’s intentions to the people around it (the person it’s following, or other people sharing the environment). Are you planning to use auditory or visual cues to signify this?	We have not implemented auditory or visual intention cues in the current Milestone 2 code. Our effort in this milestone was focused on perception, following control, safety supervision, and hardware integration. This remains a possible extension for a future milestone if time permits.	Not yet implemented
If you plan to use the TurtleBot outside the lab, how do you plan to set up a WiFi access point to communicate with the robot over ROS?	Outdoor or off-lab network deployment is not implemented in the current project code. Our Milestone 2 workflow uses the TurtleBot communication setup available in the course environment, including SSH access and ROS topic visibility from the external machine. We documented the current setup as the active hardware workflow, but we have not yet developed a custom standalone WiFi access point solution.	Not yet implemented
How can you make sure the person it’s following is unique compared to other people in the environment?	The current implementation does not yet guarantee unique target identity in a multi-person scene. We are using YOLO-based person detection and the active stack does not yet include persistent identity tracking or re-identification. We explicitly documented this as an open challenge and a future extension area.	Pending
Positive feedback: the safety recovery behavior is a strong professional addition.	We preserved and expanded this idea by implementing `safety_supervisor.py` as an explicit runtime safety layer. It monitors command freshness, target visibility, and obstacle conditions, and overrides unsafe motion with stop commands before commands reach the base.	Done

Individual Contribution Table

Team Member	Primary Technical Role	Key Git Commits / PRs	Specific File(s) Authorship
Harsh Padmalwar	Control, safety, integration, documentation	dec5616, 73cd6d5, bfc6d75	follow_controller.py, safety_supervisor.py
Atharv Kulkarni	Perception, YOLO integration, hardware testing, documentation	20ddda6, 87e1cab, cba4c2f	target_tracker.py, person_follower.py

Git Audit Readiness

To keep our repo audit-ready, we will make sure that:

all code is committed incrementally
both team members have visible authored commits
file authorship matches the contributions claimed in the report
the final submission includes the exact commit hash used for grading

Milestone 3 Plan

For Milestone 3, we will focus on improving follow quality rather than just proving integration.

Planned work

improve heading regulation during forward motion
keep the person centered in the camera viewport
use the last seen bounding-box direction when entering search mode
reduce search oscillation
improve reacquisition after temporary target loss
reduce perception flicker
perform additional hardware tuning and validation

Conclusion

Our project has moved from a Milestone 1 design proposal into a Milestone 2 hardware-tested system capable of detecting a person and moving toward them autonomously. The current implementation demonstrates successful integration of perception, control, safety, and actuation on the TurtleBot platform.

The main remaining challenge is not the robot kinematics themselves, but the quality of follow control and visual centering during motion. In Milestone 3, we will focus on refining this behavior so the robot can follow more naturally, keep the person centered in view, and search intelligently when the target is briefly lost.

References

TurtleBot 4 User Manual
ROS 2 Documentation
Ultralytics YOLO Documentation
OAK-D Documentation
RAS 598 project milestone page
